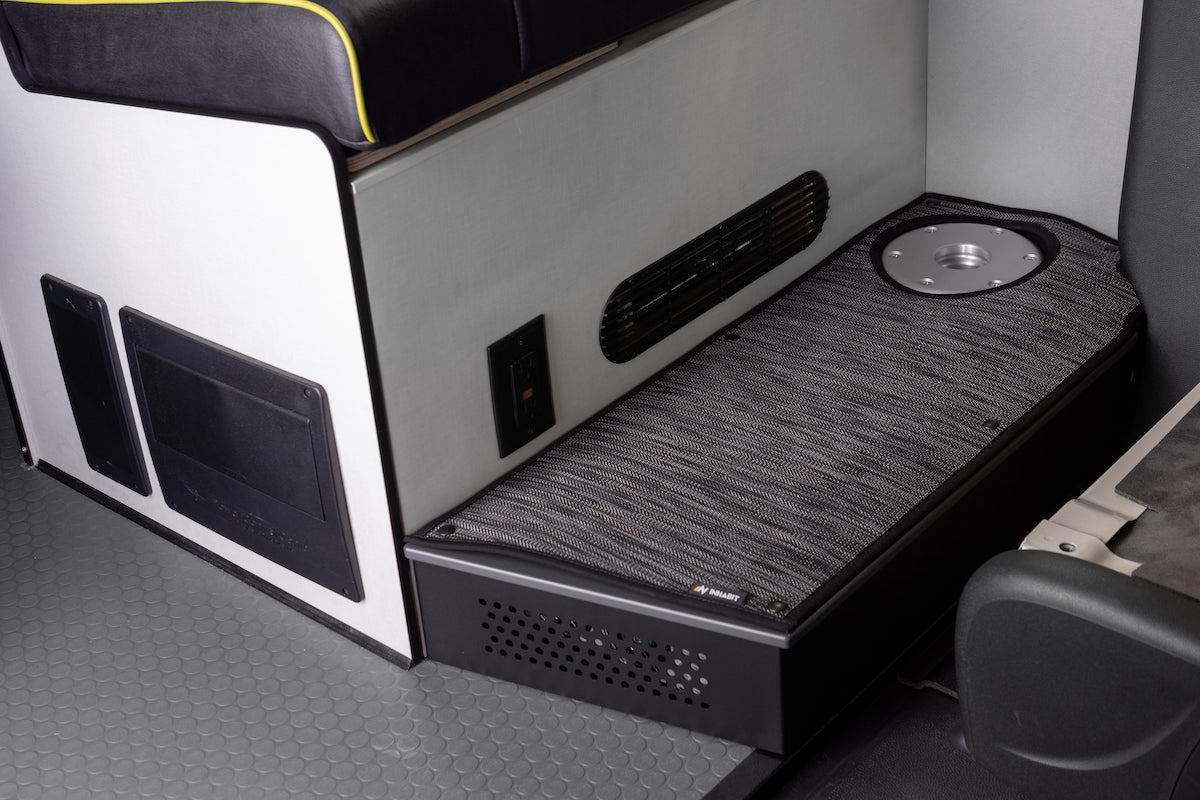

Power System Upgrade for 3rd Generation Revels
A complete power system upgrade
$18,495 installed* (does not include tax or shipping)
The RoamRig Power System Upgrade for 3rd Generation Revels goes far beyond added battery capacity—it’s a complete power system upgrade. We add two more 320ah batteries (for a total of 960ah), upgrade the inverter and charge controller. Perhaps most importantly, we also upgrade the auxiliary alternator so you have as much power as possible for recharging the upgraded battery bank.
*add $6,500 if converting from a 2nd generation Revel with two 125ah batteries.
1
/
of
4
Features & Components
- 960Ah of battery capacity with the addition of 2 more320ah batteries, mounted in the current battery location
-
Kisae 3000w pure sine inverter with 100A shore charging capability
- Run air conditioning while you cook with the induction cooktop
- 1 year warranty
-
Kisae 750w DC-DC alternator charger with integrated MPPT solar controller
- Will charge while running the engine in parallel to auxiliary alternator as well as acting as charge backup in the case of auxiliary alternator failure
- 1 year warranty
- Victron bluetooth enabled BMV712 battery monitor to accurately monitor the state of charge of the battery bank rather than monitoring each battery individually
-
Upgraded larger auxiliary alternator to replace the 170A unit installed by Winnebago
- With 960ah, you will want as much power as possible from the alternator for faster charging!
- With 960ah, you will want as much power as possible from the alternator for faster charging!
-
New control panel with simplified/streamlined user controls and labeled switches
- Eliminate unnecessary and confusing user-facing controls
- Eliminate bed switch key
- Simple on-off switch for inverter
Need Less?
Check out our smaller power system upgrades that might be a better fit for your needs.
See for Yourself
Start the conversation
Ready to schedule, or just exploring your options? Even if you're just wondering “do I need an upgrade?” we’re happy to help.
